Description

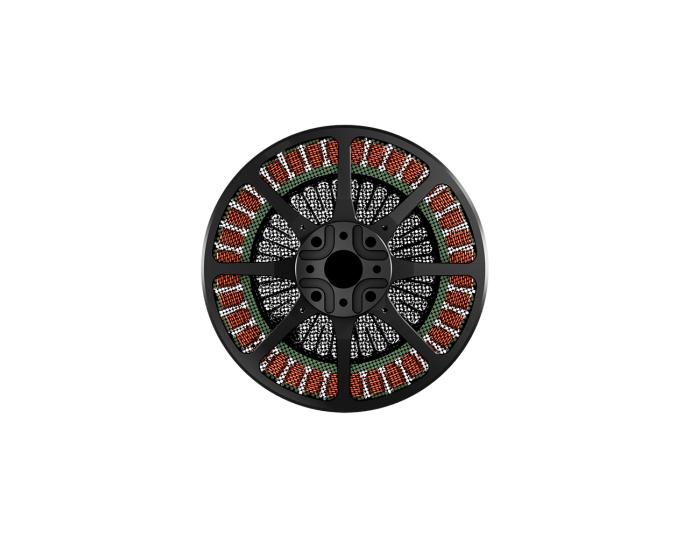

About T-MOTOR U8 Lite Power Efficiency Multirotor UAV Motor KV100
T-Motor T-Motor U8 Lite KV100 Standard Version features an ultra-light design for extended flight times. With precise mesh protection, a self-cooling system, and heat-resistant wires, it ensures top efficiency and performance. Its curved magnet design unlocks maximum potential, making it a reliable high-performance brushless motor.
U8 Lite KV100 Highlights:
1.Max. thrust ：7.3kg
2.MTBF：About 1000hours
3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
4.Industrial grade, dust proof, water proof.
Application Areas：
Surveillance, cruise, security and protection, surveying and mapping.
Packing List Includes:
1x T-MOTOR U8 Lite Motor KV100
1x Hardware pack
Matching Guide:
T-MOTOR G28*9.2 prop / Alpha 60A 12s ESC
Specifications
| Diameter | 87.1mm |
|---|---|
| Configuration | 36N42P |
| Height | 27.05mm |
| Lead Spec | 90mm |
| Shaft Diameter | 15mm |
| Packing Size | 130*111*50.6mm |
| KV | 100 |
| Rated Voltage（Lipo） | 12S |
| Motor Weight (Incl. Cable) | 238g |
| Propeller Recommendation | 27-28” |
| Idle Current（18V） | 0.7A |
| Quadcopter（28CF） | 14kg |
| Internal Resistance | 170±5mΩ |
| Hexacopter（28CF） | 21kg |
| Peak Current（180s） | 29.3A |
| Octocopter（28CF） | 28kg |
| Max. Power（180s） | 1406.4W |
