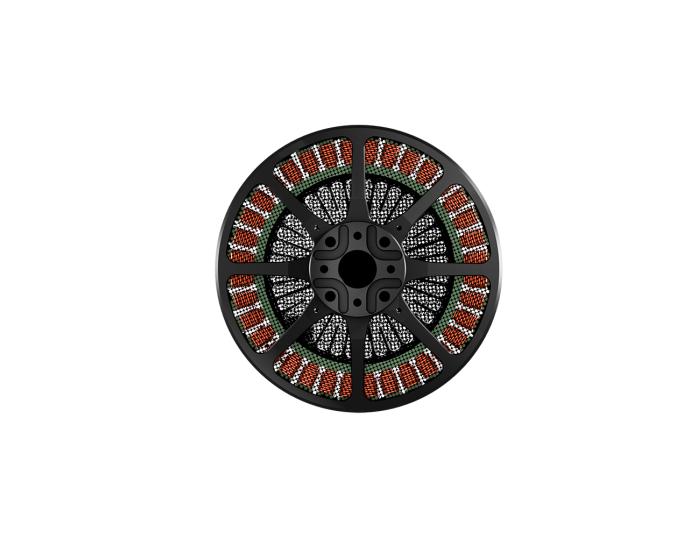

T-Motor U8 Lite L Multi-rotor UAV Motor

€348.00

KV110KV110
KV95KV95
SKU: TM-U8-LITE-L-KV110Categories: Motors
Description

About T-MOTOR U8 Lite L Efficiency Multirotor UAV Motor KV110

T-MOTOR U8 Lite L KV110 delivers exceptional thrust up to 11.2kg with an ultra-light design for extended flight durations. Built with imported custom bearings, it features a redesigned structure tested for axial and radial stresses, ensuring a lifespan of 1,000 operational hours and up to 1,500 flights. Its advanced magnetic circuit matches the efficiency of the U8 Lite, offering unmatched power and reliability.

U8 Lite L KV110 Highlights:

1.Max. thrust :11.2kg

2.MTBF:About 1000hours

3.Features:Industrial Grade, Waterproof, dustproof, low noise, large bearings

4.Industrial grade, dust proof, water proof.

Application Areas:


Surveillance, cruise, security and protection, surveying and mapping.

Packing List Includes:

1x T-MOTOR U8 Lite L Motor KV110

1x Hardware pack

Matching Guide:

T-MOTOR G30*10.5 Prop

Specifications

KV 95
Rated Voltage(Lipo) 12S(4.2V/pc) / 48-52V
Motor Weight (Incl. Cable) 280g
Motor Dimensions Φ87.1×28.05mm
Idle Current(18V) 0.7A
Shaft Diameter 15mm
Internal Resistance 146mΩ
Configu ration 36N42P
Peak Current(180s) 38A
Cable Length 90mm
Max Power (180S) 1790W
Packing Size 130*111*50.6mm
