Description
Specifications

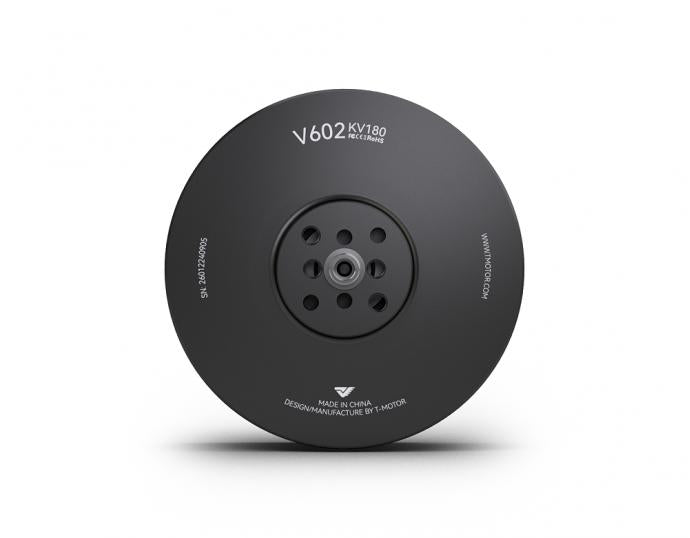

| Model No./ Kv | V602 KV180 |
|---|---|
| Magnet Temperature Resistance Grade | Class E 150℃ |
| Motor Size（mm） | Φ68.8*36.9 |
| Lead（mm） | 14AWG*600 |
| Stator Technology | Anti-rust treatment;180°C high temperature-resisting coatings |
| Enamelled Wires Temperature Resistance Grade | Class C 220℃ |
| Configuration | 24N28P |
| Coil Withdraw Voltage | 500V/5s |
| Shaft Diameter（mm） | IN:6 OUT:6 |
| Rotor Dynamic Balance Standard | ≤5mg |
| Bearing | Imported 626ZZ |
| IP | IP45 |
